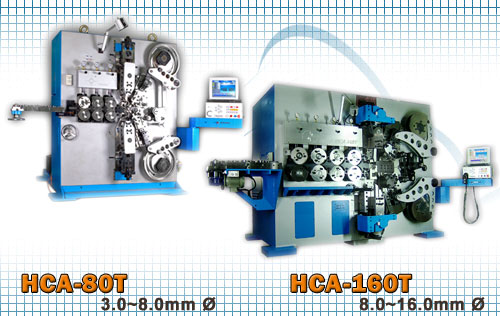

HCA SPECIFICATION
MODEL
HCA-30T
HCA-50T
HCA-80T
HCA-120T
HCA-160T
HCA-200T
Wire Forming Capability

0.6~
3.0 úp

2.0~
5.0 úp

3.0~
8.0 úp

6.0~
12.0 úp

8.0~
16.00 úp

10.0~
20.00 úp

Max Feeding Ratc 120M/min 80M/min 60M/min 46M/min 42M/min 42M/min or 30M/min
Coiling Ratio Sí┘3 Sí┘3 Sí┘3 Sí┘4 Sí┘4 Sí┘4
Max O.D. 60mm 28mm 51.5mm 78mm 126mm 126mm or
145KW
Max Power 10KW 10KW 10KW 10KW 10KW 10KW
Axes Controller 6 6 6 6 6 6
No of Roller 4PCS 6PCS 6PCS 8PCS 8PCS 10PCS
Lengthener Application YES YES YES YES YES YES
Weight

1500KG

3800KG

6500KG

15000KG

18000KG

20000KG

Dimensions (cm) 180*105*
210
250*155*
210
310*220*
220
440*228*
227
495*280*
260
530*280*
260
VOLTAGE AC 220
3 úp
AC 220
3 úp
AC 220
3 úp
AC 220
3 úp
AC 220
3 úp
AC 220
3 úp
We reserve the right to modify machine specifications for reason of improvement without prior notice!
CNC coiling machines

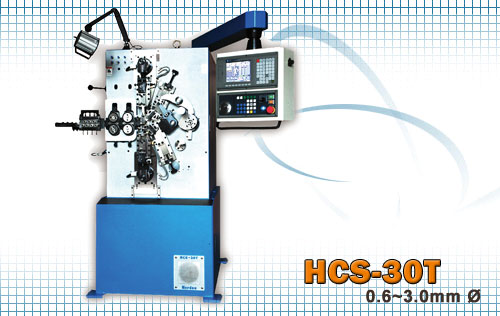

HCS SPECIFICATION
MODEL
HCS-08T
HCS-16T
HCS-30T
HCS-50T
HCS-80T
Wire Forming Capability

0.2~0.8 úp

0.4~2.0 úp

0.6~3.0 úp

2.0~5.0 úp

3.0~8.0 úp

Max Feeding Ratc 210M/min 150M/min 120M/min 80M/min 60M/min
Coiling Ratio Sí┘3 Sí┘3 Sí┘3 Sí┘3 Sí┘3
Max O.D. 20mm 40mm 40mm 80mm 120mm
Max Power 2.8KW 7KW 10KW 29KW 42.5KW
Max Servo Controller 5 (MAX6) 5 (MAX6) 5 (MAX6) 5 (MAX6) 5 (MAX6)
No of Roller 2~4PCS 4PCS 4PCS 6PCS 6PCS
Graph Mode Support YES YES YES YES YES
Servo Torsion Application

YES

YES

YES

YES

YES

Weight 400KG 700KG 1000KG 2500KG 6000KG
Dimensions (cm) 90*88*150 155*105*175 163*90*180 210*155*208 308*216*200
VOLTAGE AC 220 3 úp AC 220 3 úp AC 220 3 úp AC 220 3 úp AC 220 3 úp
We reserve the right to modify machine specifications for reason of improvement without prior notice!
