Lynx Gage


If you're searching for accuracy, reliability and ease of use in an economical spring gage-you've found it!
The Lynx Gage is another innovative solution from LION PRECISION. We're the original designer of noncontact spring length systems and have been totally dedicated to supporting the spring manufacturing industry for more than 30 years.

Check these exclusive Lynx features:
one knob controls all gage functions
3 different ways to moniton springs at a glance
5-way sort
2 shutdown modes
2 adjustment modes
No drift probe
Easy to read GOOD spring counter
Monitors up to 30,000 springs per hour
@compatible with all existing Lion Precision equipment

And you can count on LION PRECISION's superb ongoing customer service support.

Lynx Dimensions:
Height:6.5 inch (165mm)
Width: 10.6 inch (269mm)
Depth: 9.2 inch (234mm)

肱察困絋rG

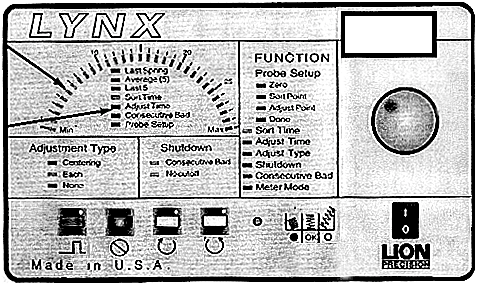

Function Menu
Multi-Function Meter
Meter Mode Indicator
Test Button & Red Light
disable Switch
Adjust Motor Actuators
Sort Indicator
Power switch
Single control knob rotates to change values and selections, and pushes to make selections and activate functions.
GOOD Spring Counter

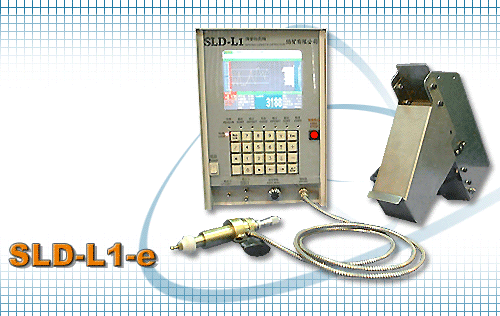

SLD-L1 SPRING LENGTH DETERCTOR
TFT COLOR LCD 6.4"
DISPLAY OFF WITH AUTO OR MANUAL
COMPACT OUTLINE AS A4 [210W*300H*243L(mm)]
CNC LINK WITH ANALOG SIGNAL
TEMPRATURE DRIFT IMPROVED UPON SLD-10
FASTER MEANSUREMENT 500PCS/MIN(WITH SORT OUT)
700PCS/MIN(WITHOUT SORT OUT)
3 WAYS AND 5 WAYS SORTING ARE AVAILABLE
FREE LENGTH CAN FEEL
OFFSET WITH RATIO OR USER DEFINE


The gage you・ve been waititng for is here!

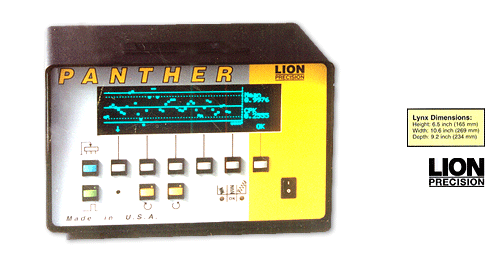

PANTHER GAGE
This new gage combines ease of use, an easy-to-read display and state-of-the-art length control with the proven reliability and accuracy of "Lion Gages." Lion Precision was the original designer of non-contact spring length systems. The Panther Gage is the latest in a tradition of innovative, powerful and flexible systems for the spring manufacturing industry.
The Panther Precision Spring Gage System includes a computer-based control unit which provides real-time SPC analysis of free length measurements. The simple menu driven system means the operator can quickly and easily operate the gage - even first-time users. And in the rare even the gage needs to be serviced, most repairs can be done by the operator, minimizing down-time.
Additional features of the Panther Gage include:
Easy-to-read display

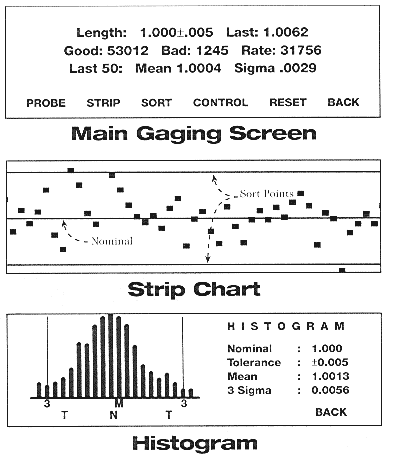

On-line SPC charts plus printer output
Separate sort function; gage will still sort after leaving main screen
Smart Control leghth adjustments
Running length profile of last 50 springs
Automatic process capability study
3-way and 5-way sort capabilities
Monitor 70,000 springs per hour
ISO9000; self-diagnosis of proper operation, probe drift test, traceable to NIST
Works with all older model accessory systems; chutes, pitch controllers, etc.
The Panther Gage includes a newly designed probe which is completely interchangeable with all other panther gages.
And a simple retrofit allows the new probe to work with older model "Lion Gages" for maximnum accuracy.
