| Ring
Making Machines |
 |

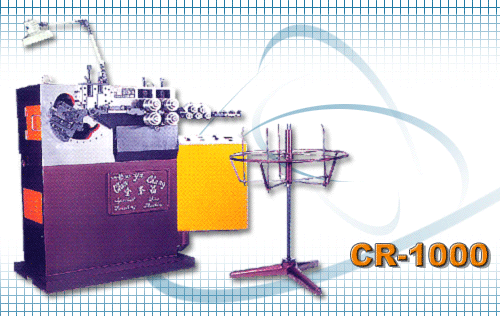

CR-1000 CN
AUTOMATIC ROING FORMING MACHINE
This is a fully automatic NC control ring forming
machine. It is equipped with “AC SERVO SYSTEM” and
“PLC (micro computer)” to control the length of
ring produced and production speed.
It is easy to operate and high precision, the product’s
precision can ahieve to ±0.01mm.
Also, the internal diamention can expanded to 1000mm.
MODEL |
WIRE
DIA |
INSIDE
DIA |
10m/m
WIRE INSIDE
DIA MIN AND MAX |
CUT
MOTOR |
CR-1000 |
1m~10mm |
60mm~1,000mm |
100mm~1,000mm |
1HP |
AC
SERVO SYSTEM |
CAPACITY |
SPEED |
VOLUME |
PACKING
MEASUREMENT |
2HP |
5pcs~60pcs per/min |
FREE SPEED |
160×60×160cm |
170×70×180cm |
|
|
AUTOMATIC
RING FORMING CUT-OFF MACHINE
In addition to producting
coil springs, our machines also produce metal
rings of a wide range of diameters and lengths
with flat or circular wires. These rings can be
used as part of electric fan guards or other protective
guards. The production precision of our machines
is ±0.1mm.
|
| MODEL |
WIRE
DIA |
OUTSIDE
DIA |
MOTOR |
VOLUME |
PACKING
MEASUREMENT |

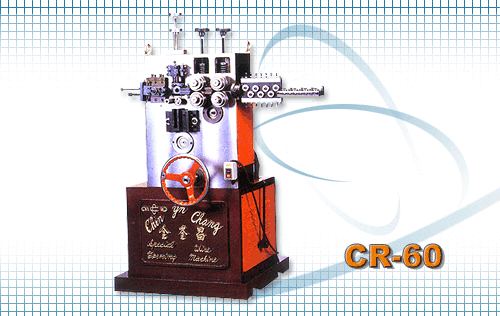

| CR-60 |
1mm~5mm
|
60mm |
1HP |
44”×27”×52” |
40”×51”×61” |

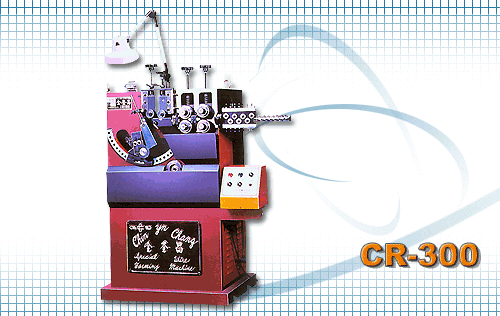

| CR-300 |
1mm~5mm |
60mm~300mm
|
1HP |
47”×30”×56” |
43”×57”×64” |
|
| MODEL |
WIRE
DIA |
OUTSIDE
DIA |
MOTOR |
VOLUME |
PACKING
MEASUREMENT |

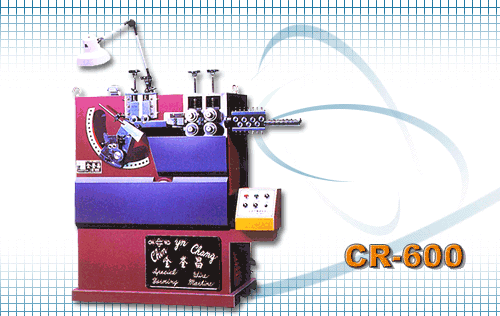

| CR-600 |
1mm~6mm
|
100mm~600mm |
2HP |
56”×30”×56” |
52”×61”×65” |
| CR-600A |
WIDTH
10mm THICKNESS 3mm |
200mm~600mm
|
2HP |
32”×30”×57 |
46”×57”×66” |
Note:
1)
Both CR-600 and CR-300, CR-60 process circular wires.
2) Model CR-600A processes flat
wires. |
|
| |
|
 |
|
| |
|
