| Spring
END Grinders |
 |
| SPECIFICATIONS
OF CNC SPRING SERIES |
|
MODEL
NO. |

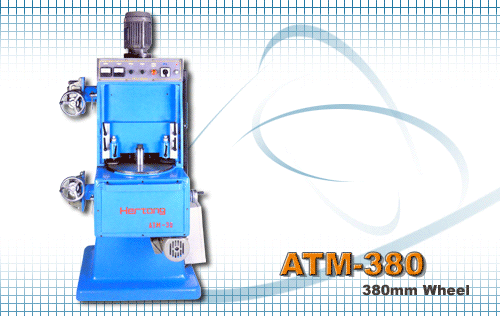

ATM-380 |

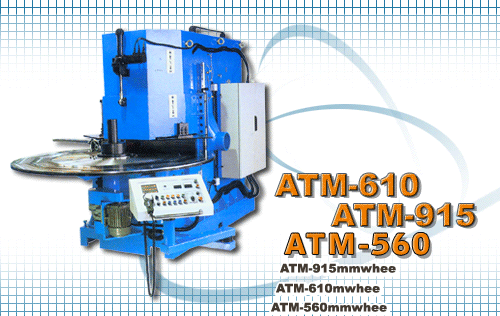

ATM-560 |
ATM-610 |
ATM-915 |
|
WIRE
DIAMETER RANGE |
0.4~3.0mm£X |
0.1~5.0mm£X |
1.0~5.0mm£X |
3.0~9.0mm£X |
|
MAX.
O. D. |
40mm£X |
|
150mm£X |
250mm£X |
|
MAX.
LENGTH |
150m |
250mm |
310mm |
450mm |
|
GRINDING
WHEEL SIZE |
380¡Ñ65¡Ñ120mm |
560x75mm |
610¡Ñ75mm |
915¡Ñ75mm |
|
CARRIER
DIAMETER |
420m |
600mm |
1480mm |
2200mm |
|
SPINDLE
SPEED |
0.1~4RPM |
0.1~15RPM |
0.1~15PM |
0.1~15RPM |
|
MACHINE
WEIGHT |
1000kgw |
2500Kgw |
8500kgw |
13000kgw |
|
MACHINE
DIMENSION |
L120¡ÑW115¡ÑH200cm |
L160xW115xH220cm |
L230¡ÑW155¡ÑH210cm |
L380¡ÑW230¡ÑH260cm |
|
We reserve the right to modify
machine specifications for reson of improvement
without prior notice.
|
 |
| |
|
| |
|
 |
|
| |
|
