Load testers

Capacity: 500gf/5kgf/50kgf
MODEL
SHA5F/50F

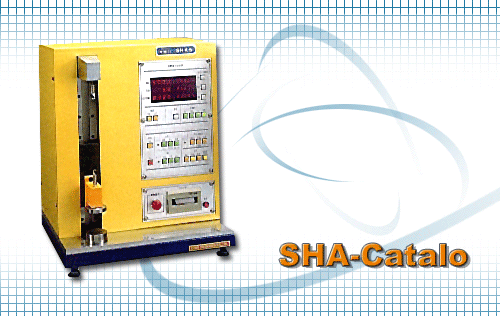

Auto-Spring Tester
Tension. Compression
This auto-spring tester is with a built-in CPU. This instrument solves former spring tester's problems, such as, complicated setting for initial set which through our original techniques. This is also compatible size spring tester.

FEATUES
Printing-out numbering, three steps load, length spring constant, free length and initial tension load.
Free selection of measurement modes; automatic or manual; 1,2 or 3 points measurement; or automatic ofr manual printout.
Measurement and point-out of free length as well as initial load.
3 kind of scale units (kg, lb, N)
Auto-range-conversion of measurement calibration.
Zero reset at any point for dispiacement of tesion or compression.
Memory of zero setting of compression plates and tension hooks by one touch.
MOtorized feeding of tension and compression with 3 speeds(1mm, 0.1mm,0.01mm)

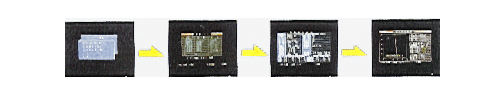

DATA PROCESS SCREEN WITH COMPUTER

OPTIONAL FUNCTION
OP-1 RS232C interface
OP-2 Computer
OP-software
OP-4 X-Y(analog)recorder
Graph indicator of relationship
between spring bend and load.
1. Memory function
2. Date input function
3. Tolerance input function
4. Print mode function
5. Statistical process function

PRINTOUT CONTENT




APPLICATION

SHA-5
SHA-19
SGA-50
Auto-change load indication 5kgf/0.5kgf 10kgf/1kgf 50kgf/5kgf
Min. unit 1gf/0.1gf 1gf/0.1gf 10gf/1gf
Auto-load range 2steps auto-range system
Max. measure stroke 220m
Read min. stroke 0.01m-0.1m auto-range
Read length system encoder linear scale encoder
Length accuracy 0.03m 0.01m 0.03m
Speed 200m/nin. Fixed
Stardard compression plate 60 mΦ
Dinensions W505×H605×D405m
Power AC 100V/220V

MODEL-TSA5~50
CAPACITY：500gf~50kgf

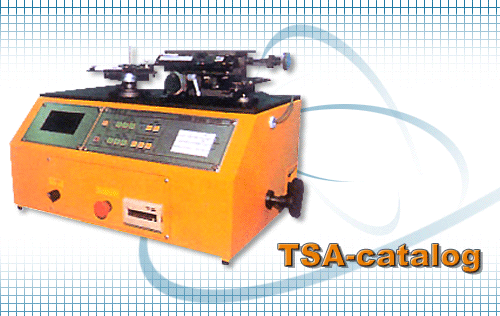

TSA STYLE TESTER FOR TORSION SPRING
TSA style tester for torsion spring can indicate X-Y table position according to the measuremnets’ points of spring design specification on screen.
STANDARD SPECIFICATIONS
Model
TSA-5
TSA-50
TSA-0.5
Capacity
5/0.5kgf
50/5kgf
0.5/0.05kgf
Torque(Max.Arm)
300kgfmm
200kgfmm
30kgfmm
Test Angle
0.1~±7200deg.
Angle Resolution
0.1deg under 1000deg/1deg over 1000deg
Twist Direction
Motorized CW/CCW
Test Arm Length
Max. 60.0mm
Test Coil Outline
Max.Φ150(with strate form) mm
Traveling Range of Load Pin
To R direction for 60 mm
Traveling parts
X： max. 60mm/Y：±25mm/up, down：60mm
Dimensions
680×700×500mm
Weight
80kg
Power
AC100V(50/60Hz)
