AUTOMATIC
PAYOFF MACHINES |
| |
SPECIFICATIONS
OF AUTOMATIC PAYOFFMACHINES
FEATURES:
¡´Two
speed controls: continuous run and pull-rod actuation
can be activated
¡@ independently or simultaneously.
¡´ Automatic detection
of abnormal or error conditions with alarm and red
light to alert the
¡@ operator.
¡´ Touch stop and out
of wire detection are standard features.
¡´ Designed to be flexible
to work with different kinds of machines. Optional
features can be
¡@ added to meet special needs.
| TECHNICAL
SUMMARY |
| MACHINE
MODEL |

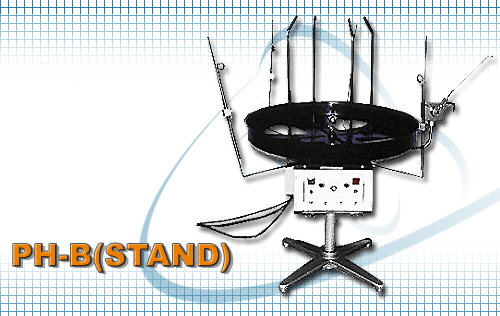

PH-B1 |
PH-B2 |
PH-B3 |

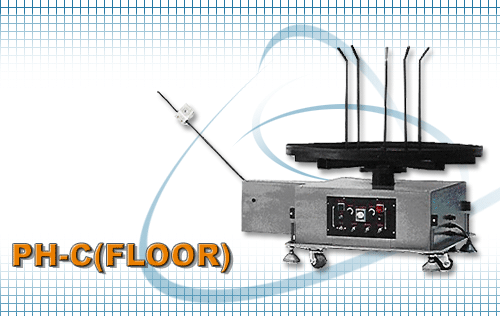

PH-C1 |
PH-C2
|
PH-C3
|
PH-C4 |
| Max. Load |
60 kgs |
100 kgs |
150 kgs |
200 kgs |
500 kgs |
1,000 kgs |
1,500 kgs |
| Table diameter |
600mm |
800mm |
900mm |
900mm |
1,000mm |
1,200mm |
1,500mm |
| Coil I.D. |
150-550mm |
150-550mm |
240-760mm |
240-760mm |
270-810mm |
285-1000mm |
325-1300mm |
| Motor
size |
90W |
100W |
180W |
250W |
370W |
746W |
1.5KW |
| Max. Speed |
75 RPM |
75 RPM |
80 RPM |
60 RPM |
60 RPM |
30 RPM |
40 RPM |
| Machine weight |
65kgs |
85kgs |
120kgs |
200kgs |
250kgs |
300kgs |
350kgs |
| Machine dimension |
90 x 70 x 120cm |
125 x 90 x 130cm |
150 x 110 x 130cm |
160 x 110 x 60cm |
180 x 120 x 60cm |
200 x 150 x 60cm |
220 x 180 x 65cm |
|
|
| |
WARRANTY & SUPPORT
One year warranty on all parts & labor. Complete
English manuals.
English speaking technical support. Machine
specifications and appearance are subjected to
change without prior notice.
|
|
| |
|
 |
|
| |
|
