| Wire-rotating
series (wire range 0.4 ~ 6.0mmØ)(RFM
Series) |
|
 |
| SPECIFICATIONS
OF CNC SPRING SERIES |
| MODEL
NO. |

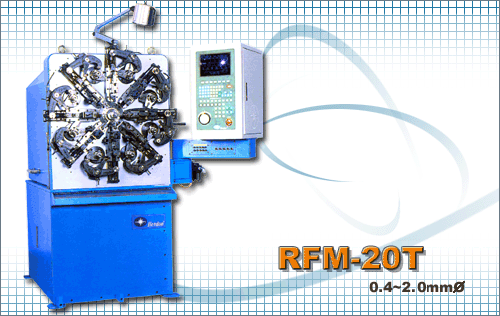

RFM-20T |
| FORMING
CAPACITY |
0.4~2.0
mmØ |
| AVG
O.D. |
50
mmØ |
| MAX
FEED SPEED |
180M/min |
| MAX
FEED LENGTH |
Unlimited |
| MIN.
RESOLUTION |
¡Ó0.01mm |
| MIN.
RESOLUTION |
¡Ó0.01~¡Ó359.99 |
| AMBIENT
TEMP |
0~45¢XC |
| COOLING
METHOD |
Interior
Nermetical fan cooling |
| DIMENSION |
L150¡ÑW153¡ÑH173
cm |
| WEIGHT |
1500Kgw |
|
|
 |
| SPECIFICATIONS
OF CNC SPRING SERIES |
| MODEL
NO. |

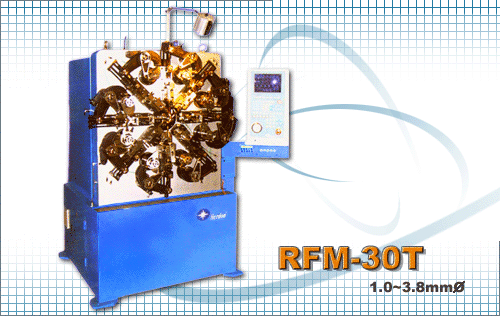

RFM-30T |
| FORMING
CAPACITY |
1.0~3.8
mmØ |
| AVG
O.D. |
60
mmØ |
| MAX
FEED SPEED |
100M/min |
| MAX
FEED LENGTH |
Unlimited |
| MIN.
RESOLUTION |
¡Ó0.01mm |
| MIN.
RESOLUTION |
¡Ó0.01~¡Ó359.99 |
| AMBIENT |
0~45¢XC |
| COOLING
METHOD |
Interior
Nermetical fan cooling |
| DIMENSION |
L180¡ÑW150¡ÑH190
cm |
| WEIGHT |
2000Kgw |
|
|
 |
| SPECIFICATIONS
OF CNC SPRING SERIES |
| MODEL
NO. |

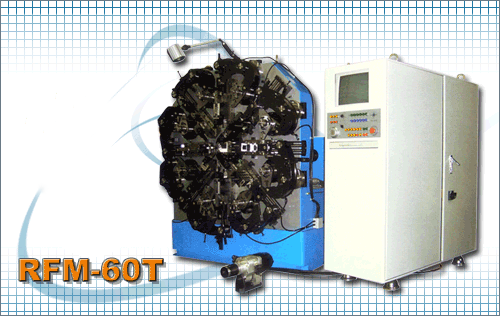

RFM-60T |
REMARKS |
| FORMING
CAPACITY |
2.6~6.0
mmØ |
STANDARD
ACCESSORIES
SLIDES
TOOL HOLDERS
CAMS
FORCE BACK CAMS
CAM ADJUSTING BLOCKS
AIR CYLINDERS
LAMP
TOOL BOX
OPTIONAL EQUIPMENT/TOOLING
HOOKFINISH
STATION
FULL SET OF TOOLING
SERVO SPINNER
PROGRAMMABLE AIR-LIFT FEED ROLLERS
SAFETY GUARD/GATE
POWER TRANSFORMER
AUTO REEL
TOOLING(QUILL,FEED ROLLERS,¡Ketc.) |
| AVG
O.D. |
80
mmØ |
| MAX
FEED SPEED |
60M/min |
| MAX
FEED LENGTH |
Unlimited |
| MIN.
RESOLUTION |
¡Ó0.01mm |
| MIN.
RESOLUTION |
¡Ó0.01~¡Ó359.99 |
| AMBIENT
TEMP |
0~45¢XC |
| COOLING
METHOD |
Interior
Nermetical
fan cooling |
| DIMENSION |
L230¡ÑW230¡ÑH210
cm |
| WEIGHT |
3700Kgw |
|
|
|
|
 |
|
| |
|
